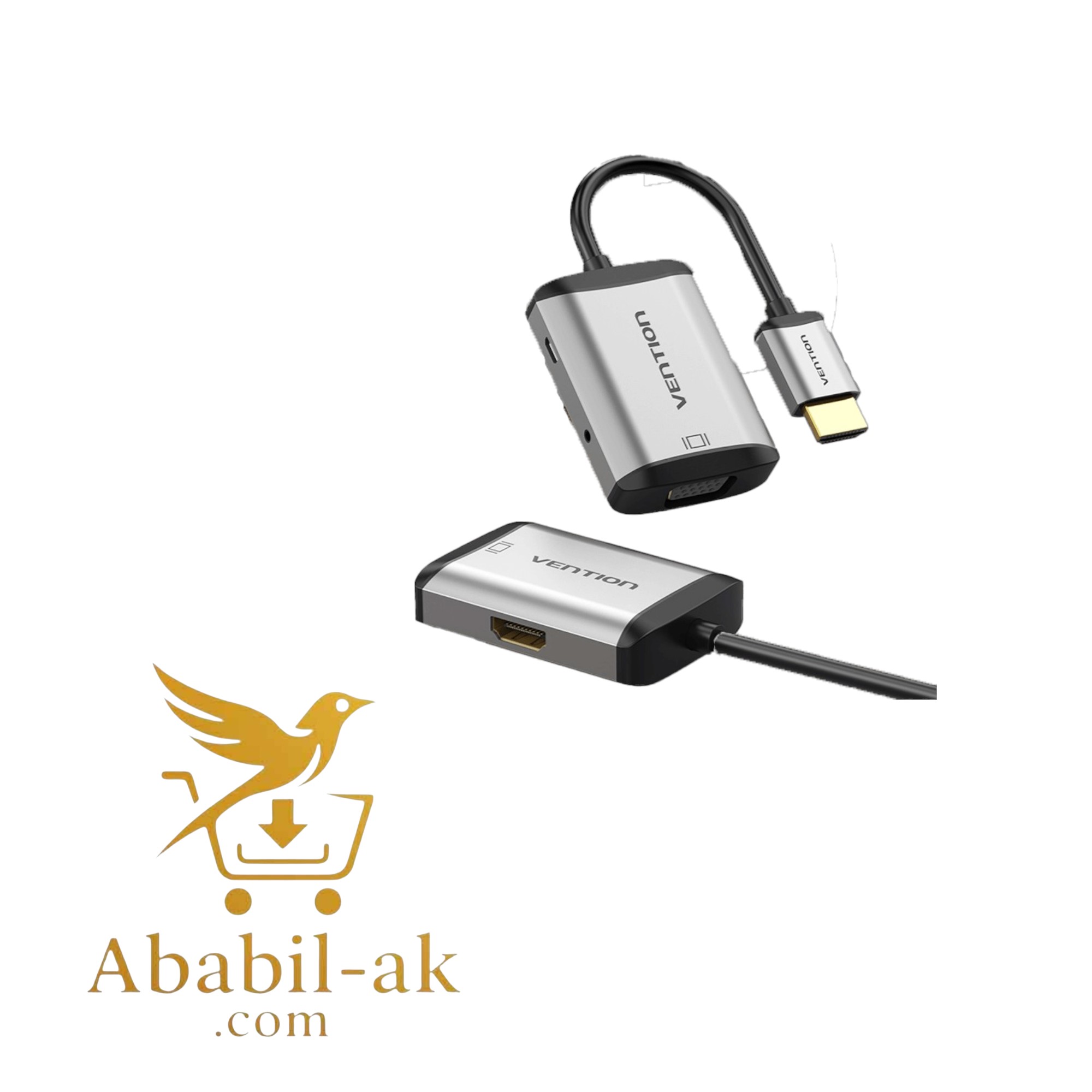

VENTION AFVHB HDMI to HDMI+VGA Converter 0.15M Gray Metal Type (G-B)

Product Details & Technical Specifications

Core Functions & Design

• Model: AFVHB

• Connector Setup: HDMI male input, dual outputs including HDMI female and VGA female ports, alongside a 3.5mm audio jack and a Micro-USB power port Cable Length: Approximately 0.15 m (15 cm) Build Quality: Aluminum alloy shell with PVC jacket, tinned copper conductors, aluminum foil shielding, slim 4.5 mm cable outer diameter (OD) Chipset: Equipped with LT8612SX for reliable signal conversion

Output Resolutions

• Single Output Mode:

  • HDMI: up to 4K @ 30 Hz (or 1080p depending on listing)  VGA: up to 1080p @ 60 Hz

• Dual Output Mode (using HDMI + VGA simultaneously): Both outputs operate at 1080p @ 60 Hz .

Power & Audio Considerations

• Power Supply: Can operate without external power in some cases, but includes a Micro-USB port for supplemental 5V/0.3A power when needs

• Audio Support: HDMI carries both audio and video. VGA output only supports video, but the 3.5 mm audio output allows adding external audio where required; includes a 0.6 m audio cable

Compatibility & Ease of Use

• Plug-and-Play: No drivers needed, compatible across Windows, macOS, Linux, gaming consoles, Chromecast, projectors, etc.

• The HDMI and VGA outputs mirror the same content (not extend display)

Accessories & Warranty

• Comes with:

  • 0.6 m 3.5 mm audio cable

  • 0.6 m Micro‑USB power cable

• Backed by a 1-year brand warranty (in Bangladesh and other regions)
