VENTION AFJH0 3 In 1 Out HDMI Switcher With Audio Separation Gray Metal Type (G-B)

Product Details & Features

Model: AFJH0 (occasionally referred to as AFFH0 in some listings)
Brand: Vention

Key Specifications:

• Inputs: 3 × HDMI (HDMI A Female)

• Outputs: 1 × HDMI, 1 × 3.5 mm analog audio, and 1 × optical S/PDIF (TOSLINK)


• Video Support: Up to 4K @ 30 Hz, plus compatibility with 1080P/720P/576P/480P and 3D formats
  Audio Separation: Ability to extract audio via optical and 3.5 mm output—ideal for sending sound to headphones or external speakers. In ARC mode, optical out is supported only

• Control Modes: Switch using onboard physical button or included IR remote (up to ~8 m range)

• Power Supply: Requires DC 5 V / 1 A (via 1.35 × 3.5 mm barrel connector)

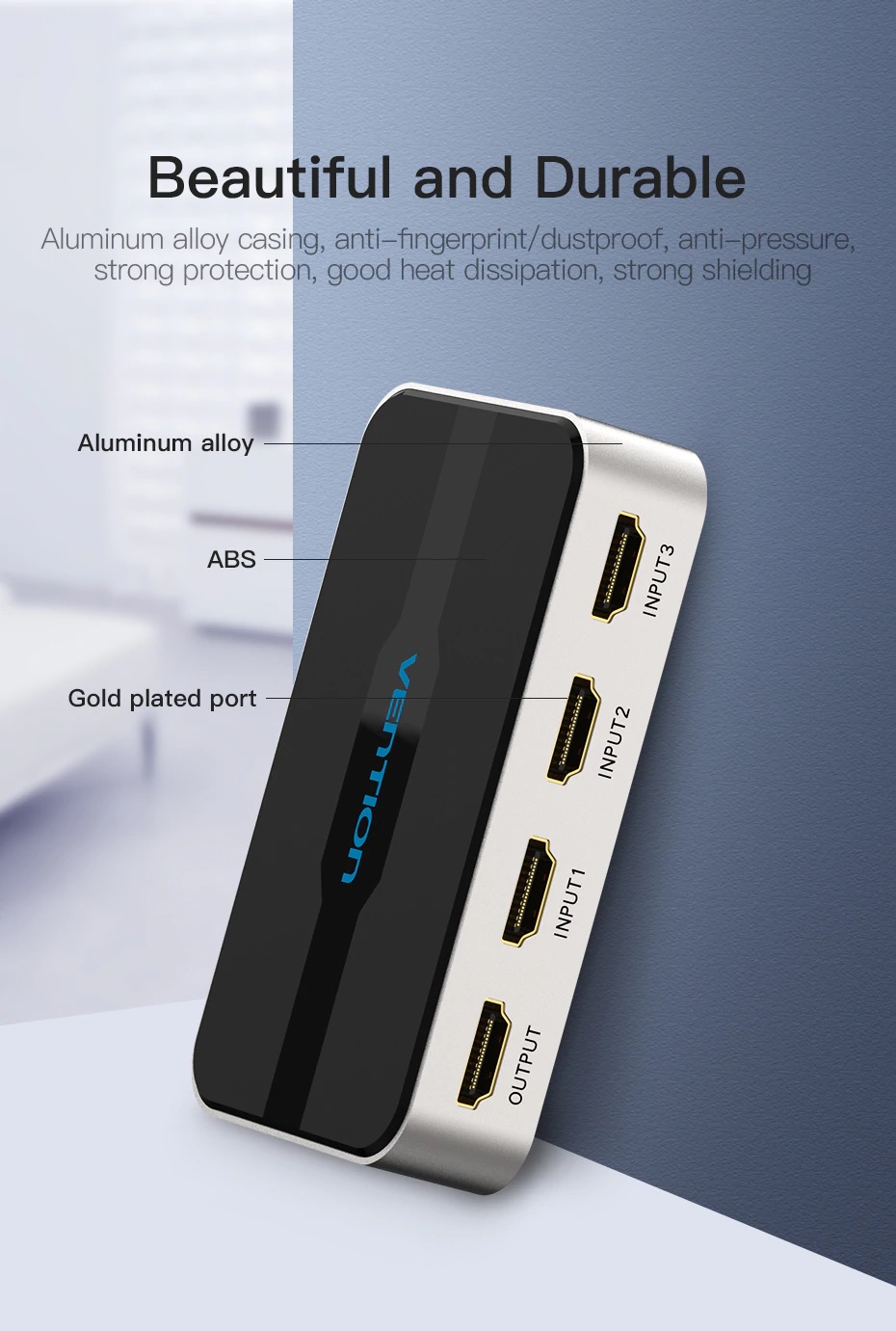

  Build Quality: Aluminum alloy + ABS casing with gold-plated HDMI connectors for durability and signal integrity
  Chipset: Powered by SII9533 control chip for stable signal switching


• Operating Conditions: Operating temperature from –10 °C to +50 °C, humidity tolerance 5%–80%
  Indicators: LED power indicator and individual signal/source indicators
  Accessories (per user manual): IR remote, detachable insulation for battery, power cable, instruction manual, and warranty card
