DTECH VGA SPLITTER 4PORT 250MHZ MODEL: DT-7254 ( C-S )

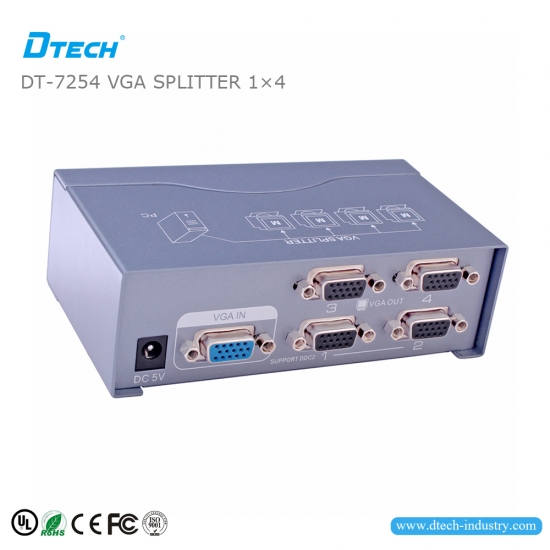

Dtech DT-7254 1 to 4 Port VGA Splitter

The Dtech DT-7254 1 to 4 Port VGA Splitter is a practical and effective way to distribute video signals to four screens at once from a single VGA source. This splitter is adaptable to different configurations because it accepts both USB and AC power supply options. With a maximum resolution of 1920×1440 at 60Hz, it can process VGA, XGA, SVGA, and UXGA video signals thanks to its 250MHz video bandwidth. By utilizing a bandwidth range of 250MHz-3dB, it guarantees the preservation of video quality on all connected monitors. The Dtech DT-7254 4-Port VGA Splitter offers versatility for various display requirements by supporting a broad range of VGA resolutions, including VGA, SVGA, XGA, SXGA, WXGA, and UXGA. When using AWG24 standard 3+6 VGA cables, the Dtech DT-7254 VGA Splitter permits an input cable length of up to 10 meters and an output distance of less than 25 meters. Additional splitters can be attached for future expansion without signal degradation because each output port supports a three-level cascade. Stable signal transmission is ensured via a 75 ohm input and output impedance. In addition to providing a high-end experience, the splitter’s sturdy, premium metal shell guarantees long-term use and efficient heat dissipation. The Dtech DT-7254 1 to 4 Port VGA Splitter is perfect for environments like conference rooms, classrooms, and exposition displays where many screens are required to display the same content. It is designed for both personal and commercial use. For anyone who needs to extend VGA signals to numerous outputs while preserving good video quality across all devices, its small size and strong performance make it a dependable option.
