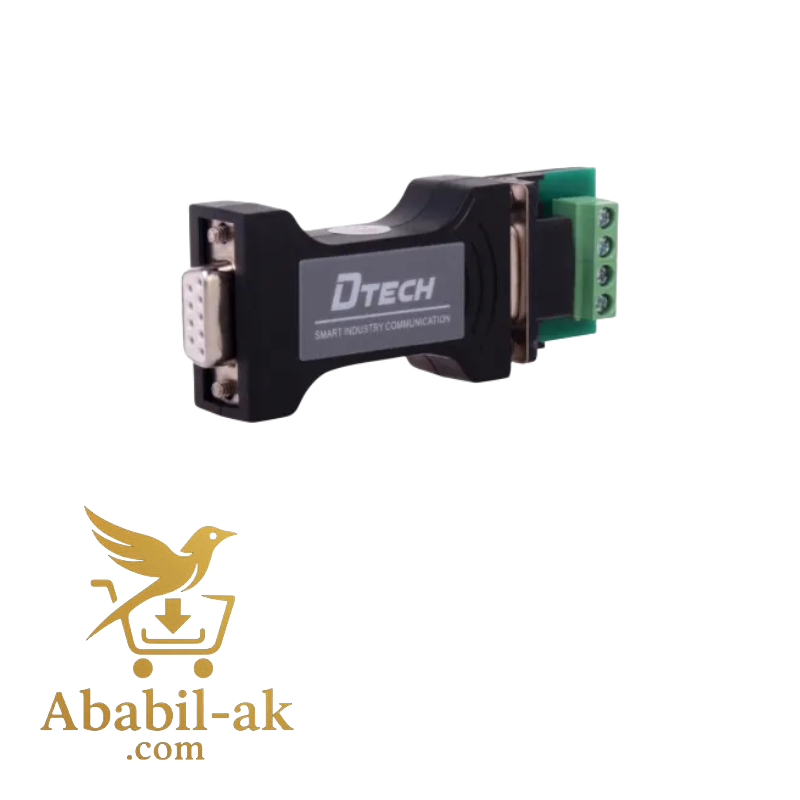

DTECH PASSIVE RS232 TO RS485 CONVERTER DT-9000 ( C-S )

Dtech DT-9000 Passive RS232 to RS485 Converter

The Dtech DT-9000 Passive RS232 to RS485 Converter is a professional-grade industrial converter designed to offer seamless communication between RS232 and RS485 devices with excellent reliability and stability. Built to meet RS232 and RS485 TIA/EIA standards, the Dtech DT-9000 Passive RS232 to RS485 Converter automatically handles data transmission and reception without the need for external traffic control signals, making it easy to use and efficient for a wide range of applications. It supports a wide communication rate ranging from 300 to 38400bps, providing flexibility for a variety of settings while ensuring stable performance. At a normal rate of 9600bps, this converter can travel a communication distance of up to 1.2 kilometers while concurrently connecting up to 32 RS232 or RS485 devices, making it ideal for large-scale industrial settings. The Dtech DT-9000 RS232 to RS485 Converter operates in asynchronous half-duplex (RS485) mode and requires no jumper wire adjustments, resulting in straightforward installation and plug-and-play functionality. Its power and dual-color data traffic indicator lights detect defects instantly, making troubleshooting quicker and more efficient. The Dtech DT-9000 RS232 to RS485 Converter features excellent optical and electrical isolation rated at 2.5KVrms and 500VDC insulation, as well as 600W per line lightning protection, ensuring safe data transfer while preventing common ground interference. The RS232 interface uses a DB9 hole-type connector, whereas the RS485 interface has a 4-terminal binding post that accepts twisted pair or shielded cable as a transmission medium.
